Jackery SolarSaga 500 X

500W Power 5-year Warranty 25% Conversion

500W High Output

Delivers a full 500W output for faster solar charging and fewer grid cycles — ideal for high-demand power needs.

25% Conversion Efficiency

TOPCon bificacial technology captures direct and reflected light from both sides for high energy yield in real-world conditions.

Extreme Weather Durability

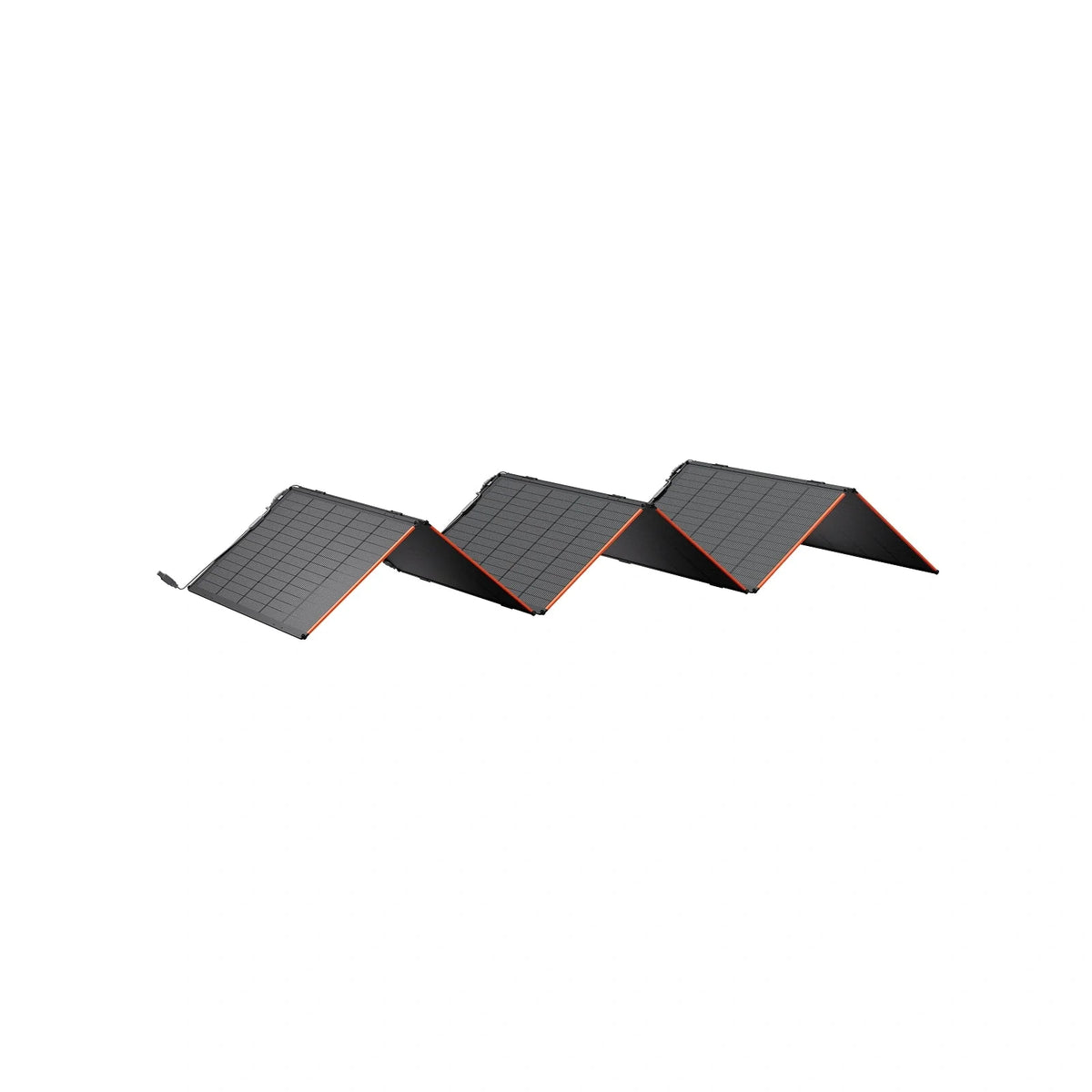

Engineered for −40 °C to 85 °C (-40 °F to 185 °F) and IP68 water/dust protection — built for extreme environments, including winds up to level 10 with M-shaped array and ground stake design.

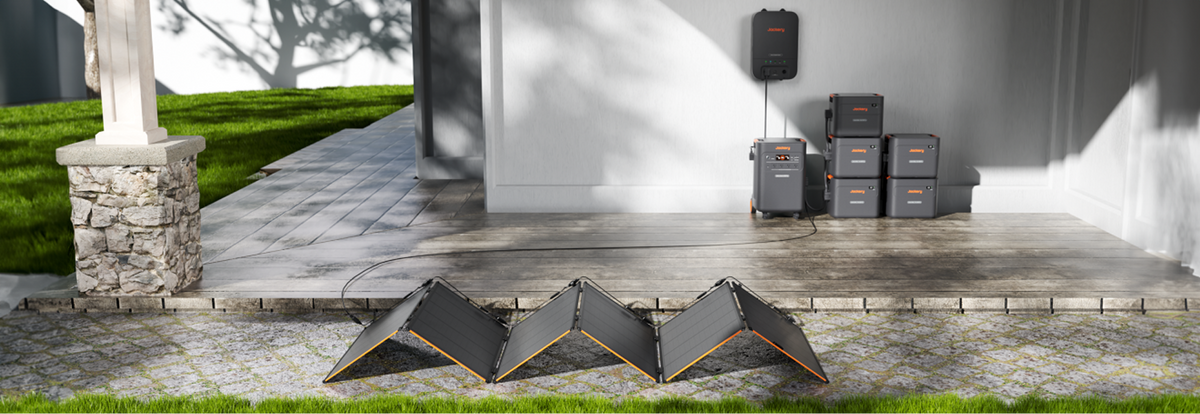

Foldable & DIY-Friendly

Lightweight, foldable design and easy connectors let you install on rooftops, balconies or fields with minimal hassle. The panel is not intended for permanent installation.

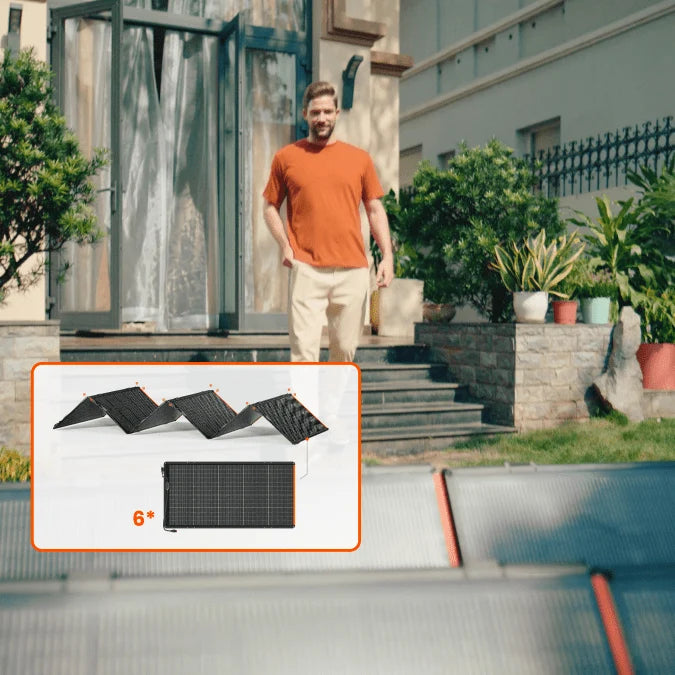

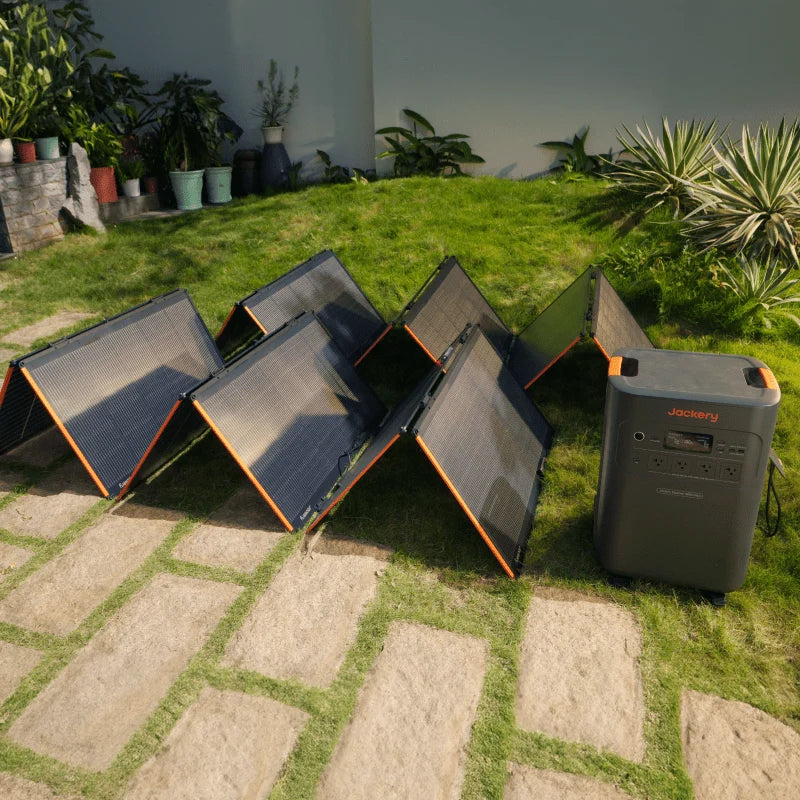

Scalable System Design

Every Explorer 500X includes six 85W high-efficiency solar panels. Whether you're setting up at a sunny campsite or a partially shaded cabin, you can use all six or just a few—each panel works independently, so you only deploy what you need.

The parallel configuration keeps things simple: just plug in and start charging. With all six panels connected, you get maximum input power to minimize recharge time. Note: This system supports parallel connection only. Do not connect panels in series, and do not exceed six panels per DC8020 input port to avoid overcurrent damage.

Wide Compatibility

SolarSaga 500X is compatible with the Explorer 5000 Plus, 3000 Pro, 2000 Plus, 1000 Plus, and 1000 2.

Extended Reach

extend the distance between your solar panels and the power station, you can purchase one or multiple 5m DC extension cables and a single DC8020 to DC7909 adapter.

Accessory Ready

To connect the SolarSaga with different Explorer portable power stations or other extension functions, please check the accessories it requires.

What is Solar Panel & How it works

POWER & SAVE MONEY

Harness Sustainable Power

500W high-efficiency TOPCon cells convert sunlight into clean, everyday power.

Charge Without the Grid

Keep your power station charged with solar — cutting reliance on the grid and using free sunlight every day.

Save on Energy Costs

Lower utility costs and extend off-grid power by pairing solar panels with storage — delivering quiet, consistent savings.

WHY SOLARSAGA 500 X



Specifications

SolarSaga 500 X

Tech Specifications

SolarSaga 500 X

General

Specification	Details
Weight	22.05 lbs ± 2.20 lbs (10.5 kg ± 0.5 kg)
Protection Class Against Electric Shock	Class II
Waterproof	IP68
Operating Temperature Range	-40–185°F (-40–85°C)
Warranty	5 Years

Solar

Specification	Details
Maximum System Voltage	90V DC
Maximum Reverse Current	15A
Bifaciality Coefficient (back/front)	Pmax>80%, Voc>97%, Isc>80%
Voltage Temperature Coefficient	-0.26%/°C
Power Temperature Coefficient	-0.32%/°C

Dimensions

Specification	Details
Folded	Around 39.21 × 20.71 × 3.82 in (996 × 526 × 97mm)
Unfolded	Around 98.15 × 39.21 × 11.57 in (2493 × 996 × 294mm)

What's Included

SolarSaga 500 X

x1

Download

SolarSaga 500 X User Manual

Jackery Solar Generator Connection Guide
