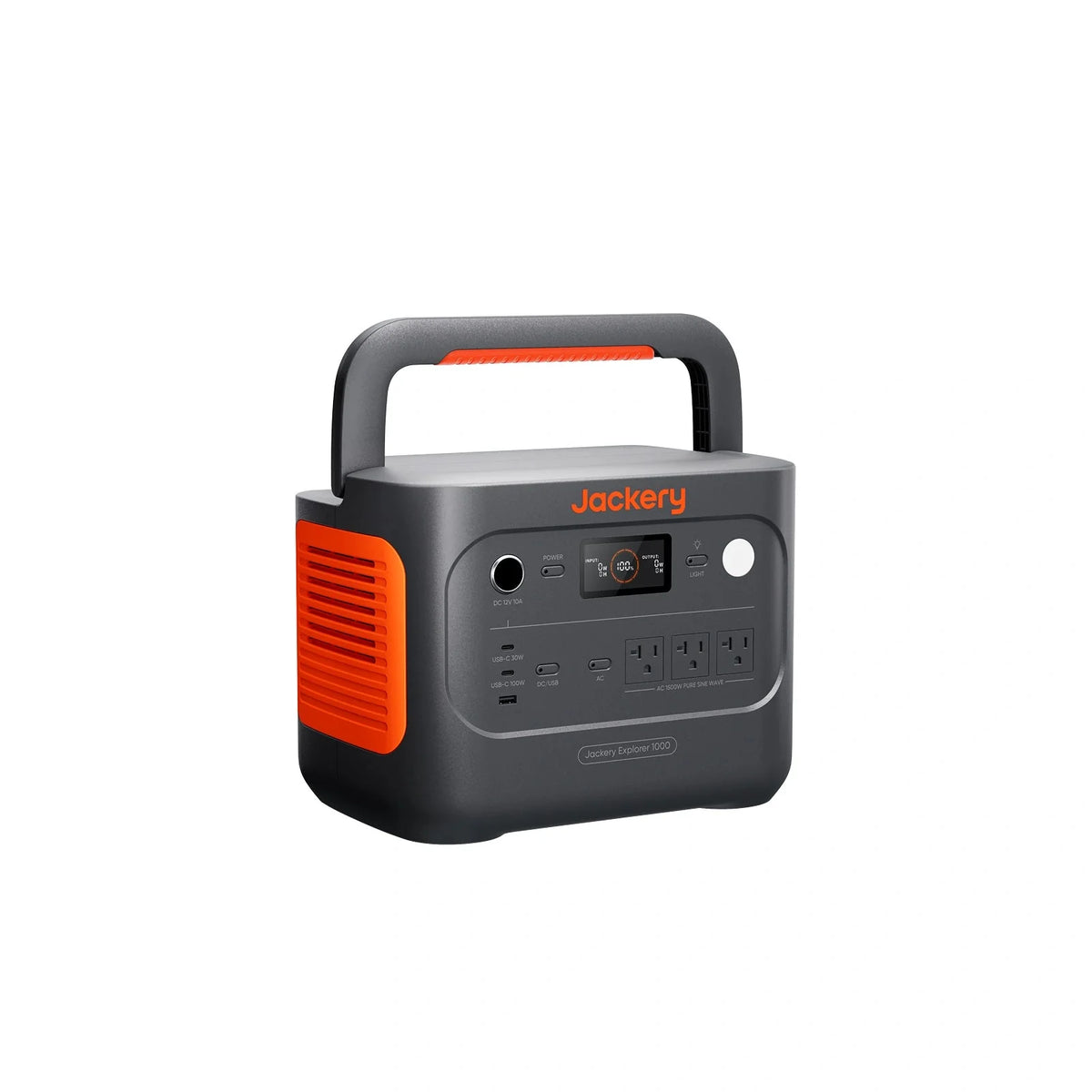

Jackery Portable Power Station Explorer 1000 v2

1070 Wh Capacity 1500W Output 10+ Years of Use

50% Power Boost

Delivers 1070Wh Capacity and 1500W Output.

Fast Charging

Dual 100W USB-C and USB-A ports with Emergency Super Charge 0-100% in 1 Hour.

Smarter, Safer Power

ChargeShield 2.0 uses 62 layers of advanced protection to keep your power stable, efficient, and safe in any situation.

Harness the Sun

Boost solar intake with Bifacial 200W panels for sustainability.

Decade of Dependability

Long-lasting LiFePO₄ cells ensure 10+ years (4,000 charge cycles) backed up by a 5-year warranty.

STRONGER, FASTER, SMALLER

Backup That HAS YOUR BACK

Kitchen

Home Office

RV Adventures

Van Life

Marine & Boat

4 Ways to RE-CHARGE 1000 v2

Wall Charging

Solar Charging (200W*2)

Solar Charging (200W*1)

Car Charging

Specifications

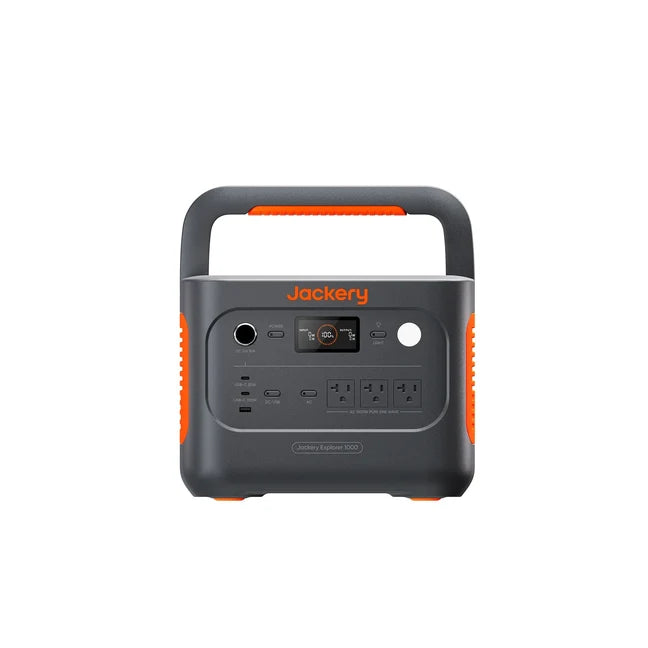

Explorer 1000 v2 Portable Power Station

1. Car Port
2. USB-C1 Output
3. USB-C2 Output
4. USB-A Output
5. DC/USB Button
6. AC Button
7. AC Output

SolarSaga 200W

Tech Specifications

Explorer 1000 v2 Portable Power Station

Product Info

Specification	Details
Capacity	30.4Ah / 35.2V DC (1070 Wh)
Cell Chemistry	LiFePO4
Cycle Life	4000 cycles to 70%+ capacity
Weight	Around 23.8 lbs (10.8 kg)
Dimensions	12.87 × 8.82 × 9.72 in / 32.7 × 22.4 × 24.7 cm
Charge Temperature	32–113°F (0–45°C)
Discharge Temperature	14–113°F (-10–45°C)
Warranty	3+2 Years

Outputs

Specification	Details
AC Output	(3x) 120V~ 60Hz
AC Total Output	1500W Rated, 3000W Surge Peak
USB-C Output	(1x) 30W Max, 5V⎓3A, 9V⎓3A, 12V⎓2.5A, 15V⎓2A, 20V⎓1.5A; (1x) 100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A
USB-A Output	18W Max, 5–6V⎓3A, 6–9V⎓2A, 9–12V⎓1.5A
Car Port	12V⎓10A

Inputs

Specification	Details
Charge Mode AC Input	100–120V~ 60Hz, 15A Max
Bypass Mode AC Input/Output	100–120V~ 60Hz, 1500W
DC Input	(2x) DC 8mm Ports: 12–16V (Working Voltage)⎓8A Max, Double to 8A Max; 16–60V (Working Voltage)⎓10.5A Max, Double to 21A/400W Max

Charging Time

Specification	Details
AC Adapter	1.58 Hours
Car Adapter (12V)	12 Hours
Solar Charging	7.5 Hours

SolarSaga 200W

General

Specification	Details
Weight	14.33 lbs ± 0.66 lbs (6.5 kg ± 0.3 kg)
Protection Class Against Electric Shock	Class II
Waterproof	IP68
Operating Temperature Range	-4–149°F (-20–65°C)
Warranty	3+2 Years

Ports

Specification	Details
USB-A Output	5V⎓2.4A
USB-C Output	5V⎓3A

Solar

Specification	Details
Maximum System Voltage	60V
Maximum Reverse Current	15A
Bifaciality Coefficient (back/front)	Pmax>70%, Voc>95%, Isc>65%
Voltage Temperature Coefficient	-(0.27±0.03)%/°C
Power Temperature Coefficient	-(0.33±0.02)%/°C

STC (1000W/㎡, 25℃, AM 1.5)

Specification	Details
Peak Power (Pmax)	200W±5%
Open Circuit Voltage (Voc)	22V±5%
Short Circuit Current (Isc)	12.5A±5%
Power Voltage (Vmp)	18V±5%
Power Current (Imp)	11.5A±5%

BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)

Specification	Details
Peak Power (Pmax)	225W±5%
Open Circuit Voltage (Voc)	22V±5%
Short Circuit Current (Isc)	13.5A±5%
Power Voltage (Vmp)	18V±5%
Power Current (Imp)	12.6A±5%

Dimensions

Specification	Details
Folded	23.62 × 23.50 × 1.57 in (600 × 597 × 40 mm)
Unfolded	89.76 × 23.50 × 0.98 in (2279 × 597 × 25 mm)

What's Included

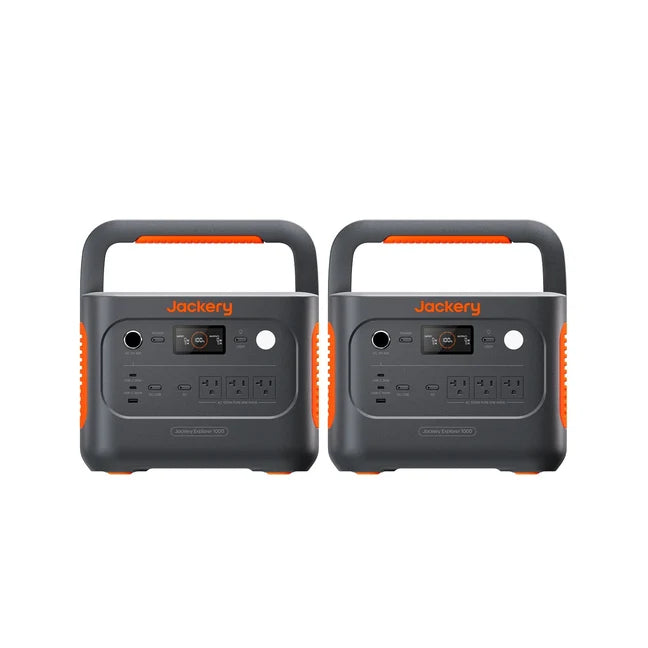

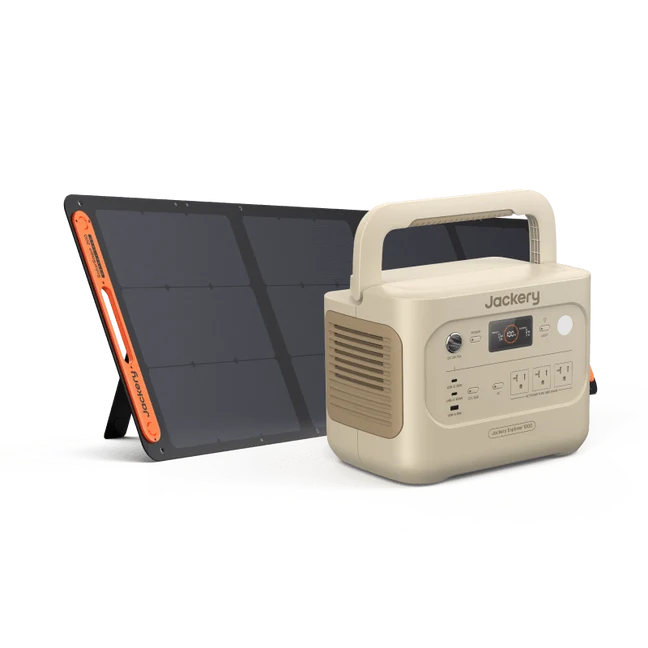

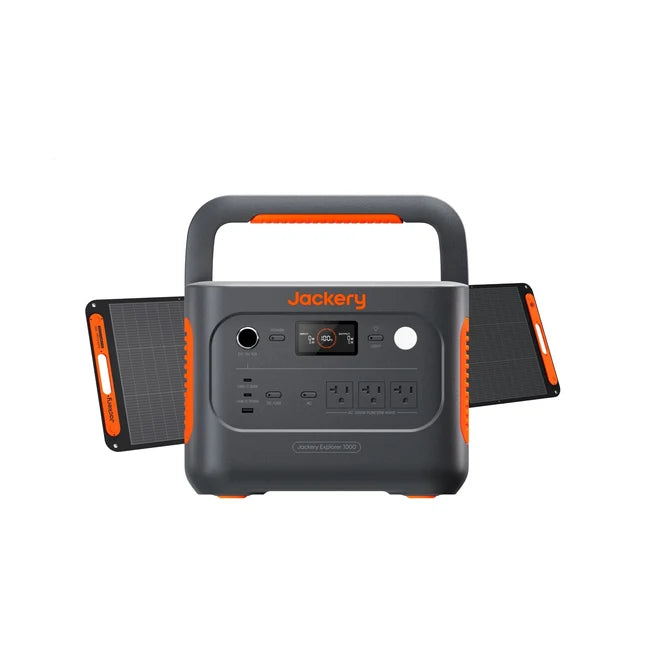

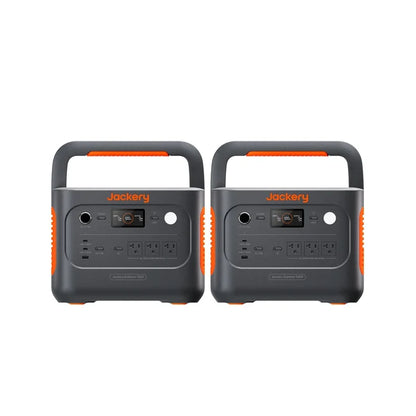

	Black / Explorer 1000 v2 Portable Power Station	Black / Explorer 1000 v2 + SolarSaga 200W	Black / Explorer 1000 v2 + Explorer 1000 v2	Dune White / Explorer 1000 v2 Portable Power Station	Dune White / Explorer 1000 v2 + SolarSaga 200W
Explorer 1000 v2	X1	X1	X2	-	-
AC Charging Cable	X1	X1	X2	X1	X1
SolarSaga 200W	-	X1	-	-	X1
Solar Charging Cable	-	X1	-	-	X1

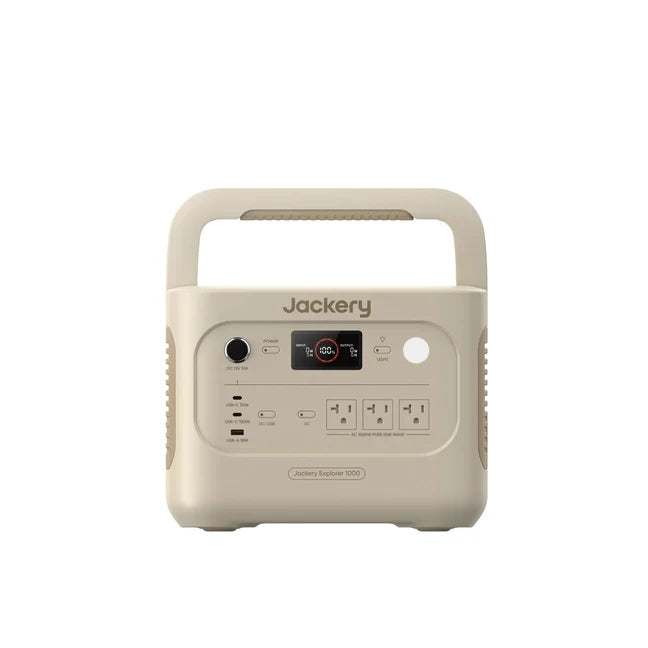

Explorer 1000 v2 (Dune White)	-	-	-	X1	X1
