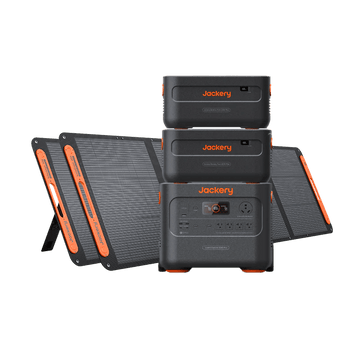

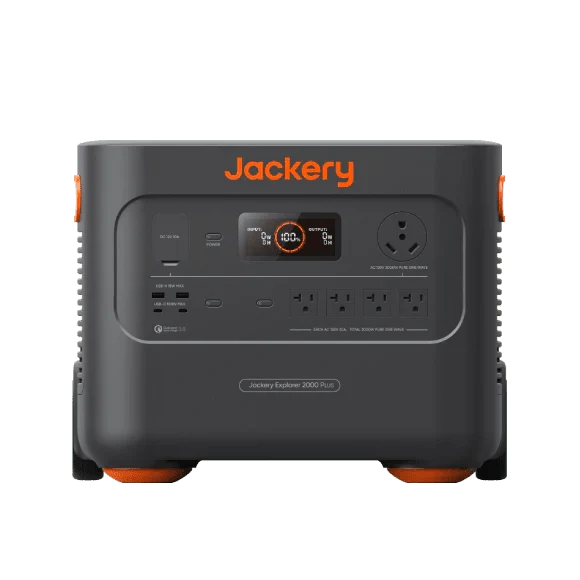

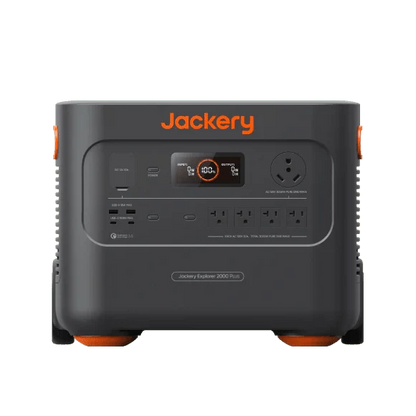

Jackery Portable Power Station Explorer 2000 Plus

2042.8 Wh Capacity 3000 W Output 10+ Years of Use

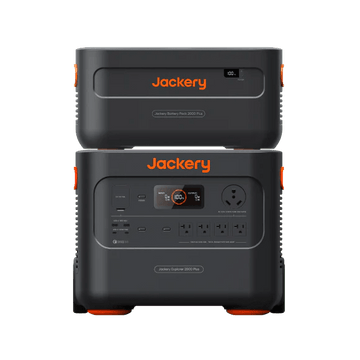

Expandable for Versatile Scenarios

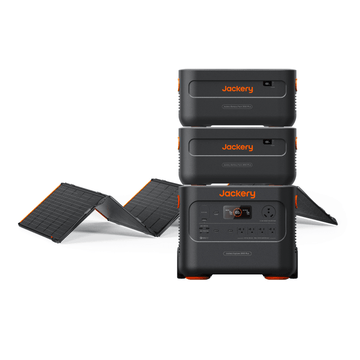

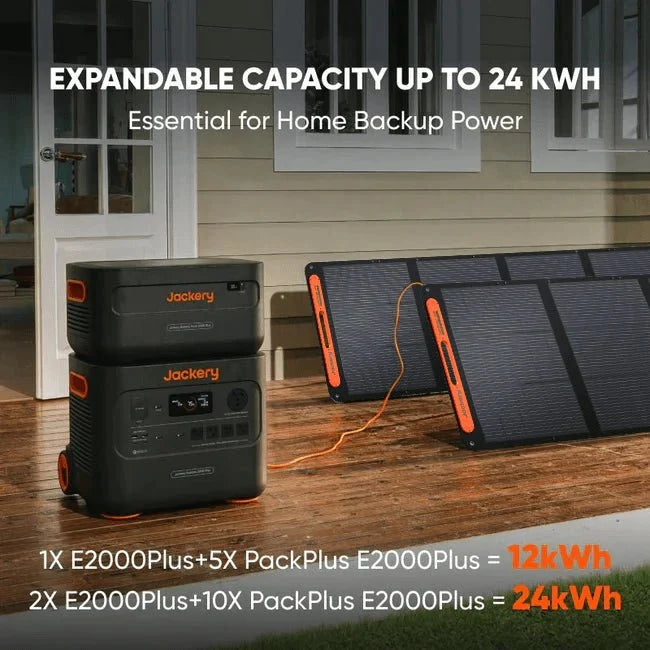

2-24 kWh of expandable capacity

Leaping Performance

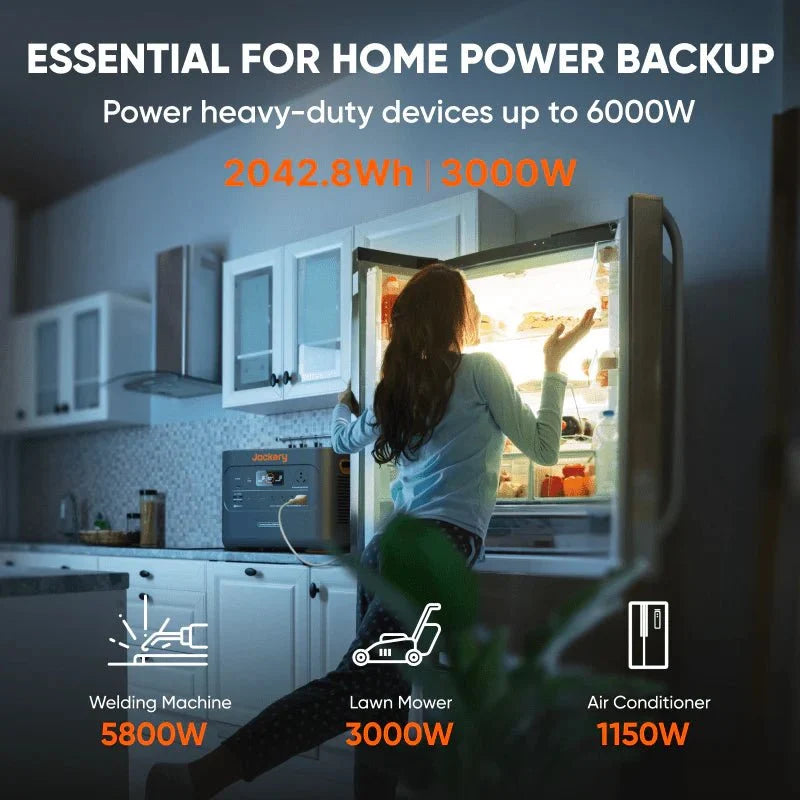

Powers Heavy-duty Devices up to 6000W

Ultra Fast Solar Charging

Advanced IBC Technology, Fast Solar Charge in 2 Hours with Solar Panel 200W*6

Long-lasting Reliability

Outstanding LiFePO4 Battery with 10-Year Lifespan

ChargeShield Technology

Using a unique variable-speed charging algorithm, fast charge technology boosts battery life by 50%

High Power Output

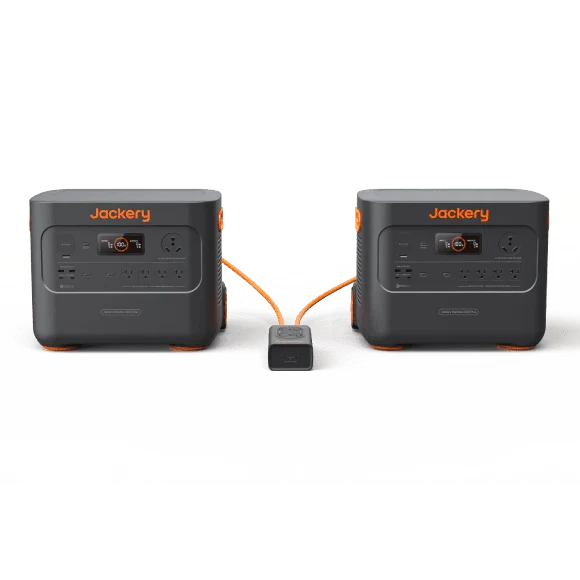

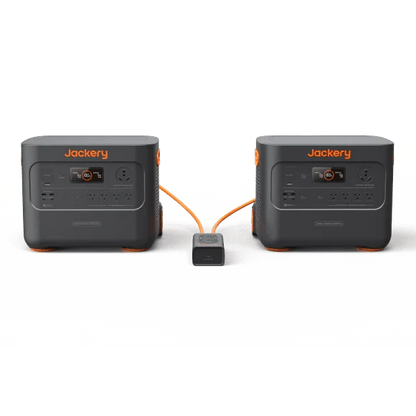

Maximum 6,000 W power in parallel connection and 120/240V expandable voltage

Features

WHY CHOOSE EXPLORER 2000 PLUS

Backup That HAS YOUR BACK.

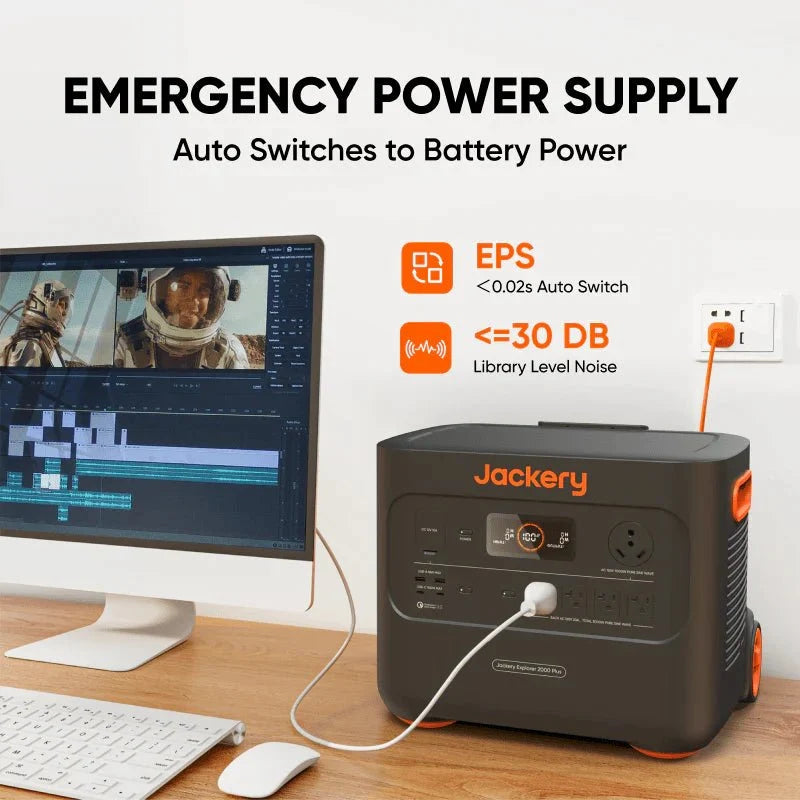

Home Backup Power

Off-Grid Power

RV Power

Professional Power

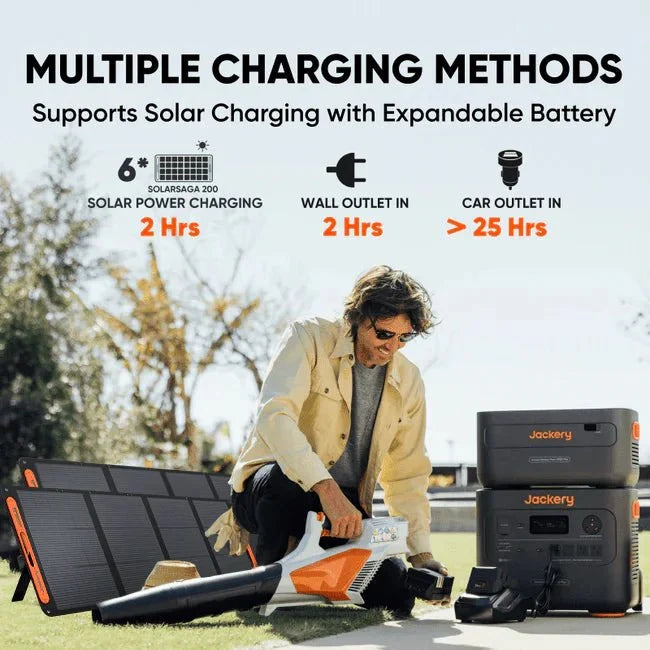

Fully Charged In 2 Hours

More Reliable: Certified Quality,Extended Warranty

TÜV Class II Certified Consumer Grade PV Products (IEC TS 63163), durable for 4000 folds, lighter and impact-resistant with Shock Resistant Technology.

More Energy: No Shading,Delivers Higher Power

Lighter: Lightweight,portable and Easy to Use

Specifications

Explorer 2000 Plus

1. Main Power Button
2. Car Port
3. USB-A Output
4. AC Output
5. AC Button
6. USB Button
7. AC Output

Battery Pack 2000 Plus

SolarSaga 200W

Tech Specifications

Explorer 2000 Plus Portable Power Station — 2042.8 Wh

Product Info

Specification	Details
Capacity	45.6Ah / 44.8V DC (2042.8 Wh)
Cell Chemistry	LiFePO4
Cycle Life	4000 cycles to 70%+ capacity
Weight	61.5 lbs (27.9 kg)
Dimensions	18.6 × 14.1 × 14.7 in / 47.3 × 35.94 × 37.36 cm
Charge Temperature	32–113°F (0–45°C)
Discharge Temperature	14–113°F (-10–45°C)
Warranty	3+2 Years

Outputs

Specification	Details
AC Output	(4x) 120V~ 60Hz, 20A Max; (1x) 120V~ 60Hz, 25A Max
AC Total Output	3000W Max, 6000W Surge Peak
USB-C Output	(2x) 100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A
USB-A Output	(2x) Quick Charge 3.0, 18W Max, 5–6V⎓3A, 6–9V⎓2A, 9–12V⎓1.5A
Car Port	12V⎓10A Max
AC Expansion Port	120V~ 60Hz, 25A Max
DC Expansion Port	32.2V–50.4V⎓97A Max

Inputs

Specification	Details
Charge Mode AC Input	120V~ 60Hz, 15A Max
Bypass Mode AC Input/Output	120V~ 60Hz, 12A Max
DC Input	(2x) DC 8mm Ports: 11–17.5V (Working Voltage)⎓8A Max, Double to 8A Max; 17.5–60V (Working Voltage)⎓12A Max, Double to 24A/1400W Max

Charging Time

Specification	Details
AC Adapter	2 Hours
Car Adapter (12V)	25 Hours
Solar Charging	7 Hours

Explorer 2000 Plus Portable Power Station — 2042.8 Wh ×2

Product Info

Specification	Details
Capacity	45.6Ah / 44.8V DC (2042.8 Wh ×2)
Cell Chemistry	LiFePO4
Cycle Life	4000 cycles to 70%+ capacity
Weight	61.5 lbs (27.9 kg)
Dimensions	18.6 × 14.1 × 14.7 in / 47.3 × 35.94 × 37.36 cm
Charge Temperature	32–113°F (0–45°C)
Discharge Temperature	14–113°F (-10–45°C)
Warranty	3+2 Years

Outputs

Specification	Details
AC Output	(4x) 120V~ 60Hz, 20A Max; (1x) 120V~ 60Hz, 25A Max
AC Total Output	3000W Max, 6000W Surge Peak
USB-C Output	(2x) 100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A
USB-A Output	(2x) Quick Charge 3.0, 18W Max, 5–6V⎓3A, 6–9V⎓2A, 9–12V⎓1.5A
Car Port	12V⎓10A Max
AC Expansion Port	120V~ 60Hz, 25A Max
DC Expansion Port	32.2V–50.4V⎓97A Max

Inputs

Specification	Details
Charge Mode AC Input	120V~ 60Hz, 15A Max
Bypass Mode AC Input/Output	120V~ 60Hz, 12A Max
DC Input	(2x) DC 8mm Ports: 11–17.5V (Working Voltage)⎓8A Max, Double to 8A Max; 17.5–60V (Working Voltage)⎓12A Max, Double to 24A/1400W Max

Charging Time

Specification	Details
AC Adapter	2 Hours
Car Adapter	25 Hours

SolarSaga 500 X

General

Specification	Details
Weight	22.05 lbs ± 2.20 lbs (10.5 kg ± 0.5 kg)
Protection Class Against Electric Shock	Class II
Waterproof	IP68
Operating Temperature Range	-40–185°F (-40–85°C)
Warranty	5 Years

Solar

Specification	Details
Maximum System Voltage	600V DC
Maximum Reverse Current	15A
Bifaciality Coefficient (back/front)	Pmax>80%, Voc>97%, Isc>80%
Voltage Temperature Coefficient	-0.26%/℃
Power Temperature Coefficient	-0.32%/℃
Open Circuit Voltage (Voc)	48.5V±5%
Short Circuit Current (Isc)	13.02A±5%
Power Voltage (Vmp)	41.7V±5%
Power Current (Imp)	12.0A±5%
BNPI Peak Power (Pmax)	545W±5%
BNPI Open Circuit Voltage (Voc)	49.2V±5%
BNPI Short Circuit Current (Isc)	13.86A±5%
BNPI Power Voltage (Vmp)	42.5V±5%
BNPI Power Current (Imp)	12.84A±5%

Dimensions

Specification	Details
Folded	Around 39.21 × 20.71 × 3.82 in (996 × 526 × 97mm)
Unfolded	Around 98.15 × 39.21 × 11.57 in (2493 × 996 × 294mm)

SolarSaga 200W Solar Panel

General

Specification	Details
Weight	14.33 lbs ± 0.66 lbs (6.5 kg ± 0.3 kg)
Protection Class Against Electric Shock	Class II
Waterproof	IP68
Operating Temperature Range	-4–149°F (-20–65°C)
Warranty	3+2 Years

Ports

Specification	Details
USB-A Output	5V⎓2.4A
USB-C Output	5V⎓3A

Solar

Specification	Details
Maximum System Voltage	60V
Maximum Reverse Current	15A
Bifaciality Coefficient (back/front)	Pmax>70%, Voc>95%, Isc>65%
Voltage Temperature Coefficient	-(0.27±0.03)%/°C
Power Temperature Coefficient	-(0.33±0.02)%/°C
Peak Power (Pmax)	200W±5%
Open Circuit Voltage (Voc)	22V±5%
Short Circuit Current (Isc)	12.5A±5%
Power Voltage (Vmp)	18V±5%
Power Current (Imp)	11.5A±5%
BNPI Peak Power (Pmax)	225W±5%
BNPI Open Circuit Voltage (Voc)	22V±5%
BNPI Short Circuit Current (Isc)	13.5A±5%
BNPI Power Voltage (Vmp)	18V±5%
BNPI Power Current (Imp)	12.6A±5%

Dimensions

Specification	Details
Folded	23.62 × 23.50 × 1.57 in (600 × 597 × 40 mm)
Unfolded	89.76 × 23.50 × 0.98 in (2279 × 597 × 25 mm)

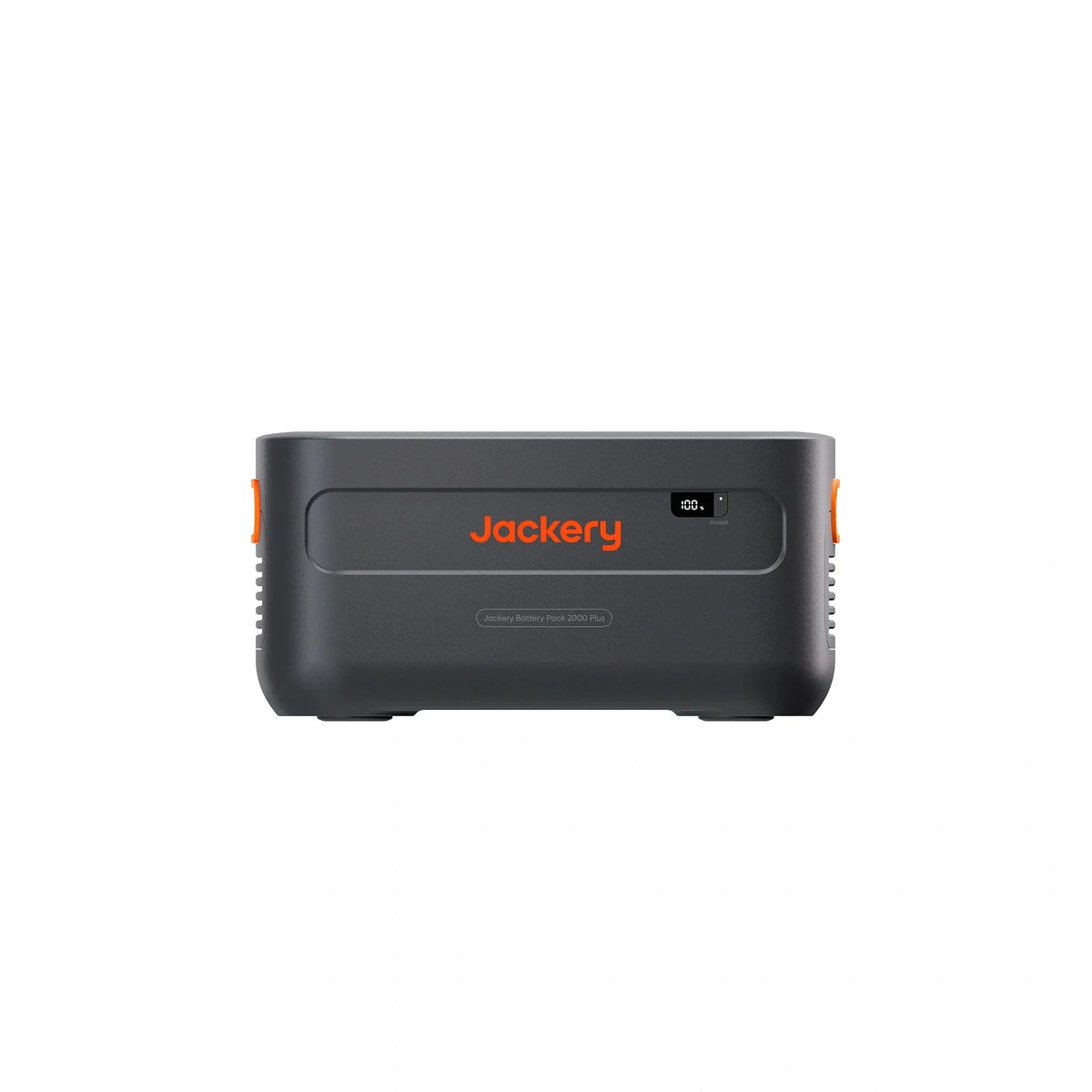

Battery Pack 2000 Plus

General

Specification	Details
Capacity	45.6Ah / 44.8V DC (2042.8 Wh)
Weight	About 41.9 lbs (19 kg)
Dimensions	18.5 × 13.2 × 9.1 in / 47 × 33.1 × 23.1 cm
Battery Lifecycles	4000 cycles to 70%+ capacity
Warranty	3+2 Years
Charge Temperature	32–113°F (0–45°C)
Discharge Temperature	14–113°F (-10–45°C)

Ports

Specification	Details
DC Expansion Port (Input)	(2x) DC 8mm Ports: 11–17.5V (Working Voltage)⎓8A Max, Double to 8A Max; 17.5–60V (Working Voltage)⎓12A Max, Double to 24A/1400W Max
DC Extension Ports (Output)	(2x) 30.2V–50.4V⎓97A Max

What's Included

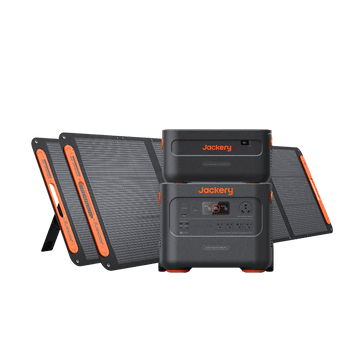

Explorer 2000 Plus Kit (6kWh) + SolarSaga 500 X	Explorer 2000 Plus Kit (6kWh) + SolarSaga 200W x 2	Explorer 2000 Plus + SolarSaga 100W mini x 2	Battery Pack 2000 Plus	Explorer 2000 Plus Kit (4kWh) + SolarSaga 200W x 2	Explorer 2000 Plus + Battery Pack 2000 Plus	Explorer 2000 Plus Portable Power Station
Explorer 2000 plus	X1	X1	X1	-	X1	X1	X1
Car Charge Cable	X1	X1	X1	-	X1	X1	X1
AC Charging Cable	X1	X1	X1	-	X1	X1	X1
Battery Pack 2000 Plus	X2	X2	-	X1	X1	X1	-
Expansion Cable	X2	X2	-	X1	X1	X1	-
SolarSaga 500 X	X1	-	-	-	-	-	-
SolarSaga 200W	-	X2	-	-	X2	-	-

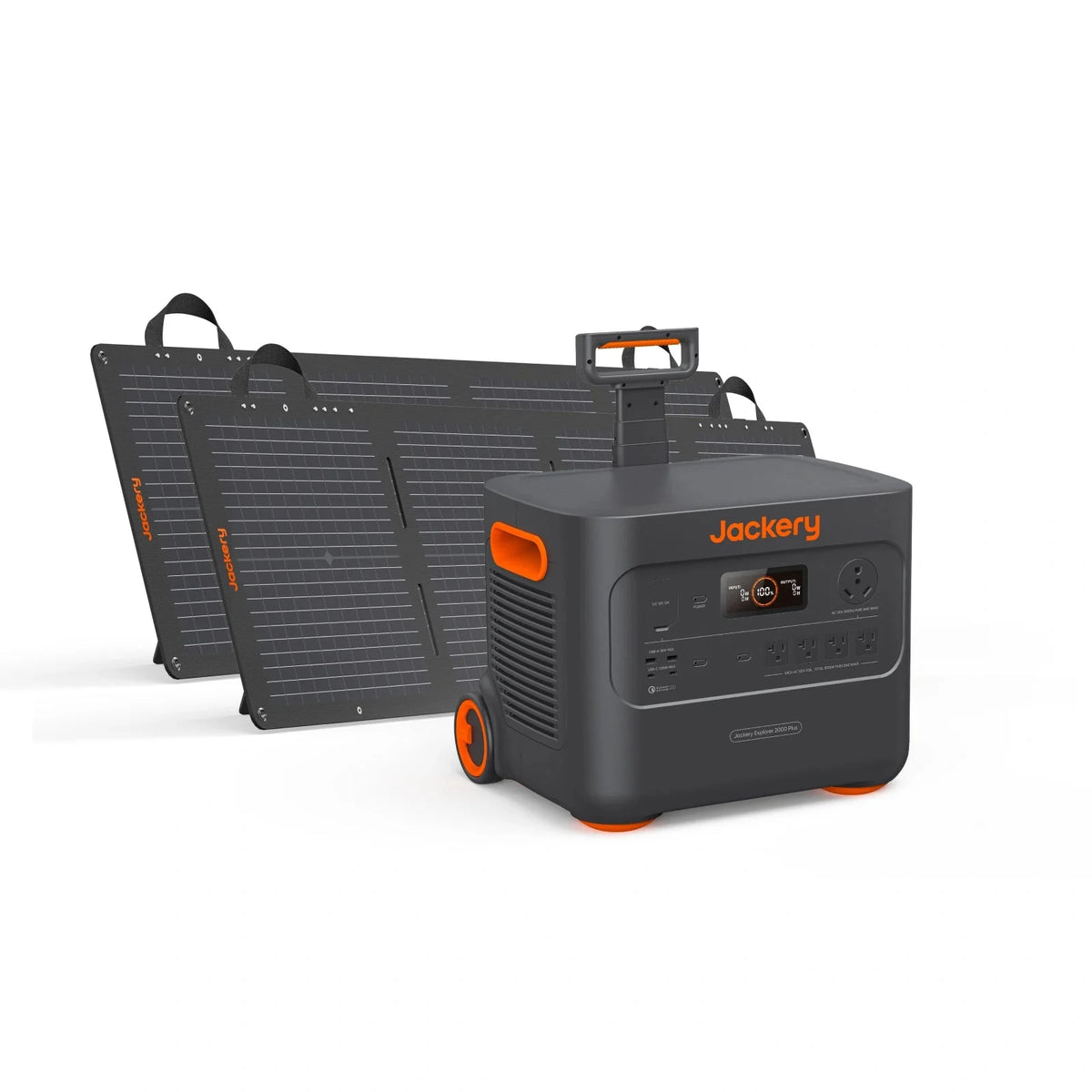

SolarSaga 100W Mini	-	-	X2	-	-	-	-

Download

Jackery Explorer 2000 Plus User Manual

Jackery Battery Pack 2000 Plus User Manual

SolarSaga 500 X User Manual

Jackery SolarSaga 100 Mini User Manual

USER MANUAL Jackery SolarSaga 200 - 666E

Jackery Solar Generator Connection Guide
